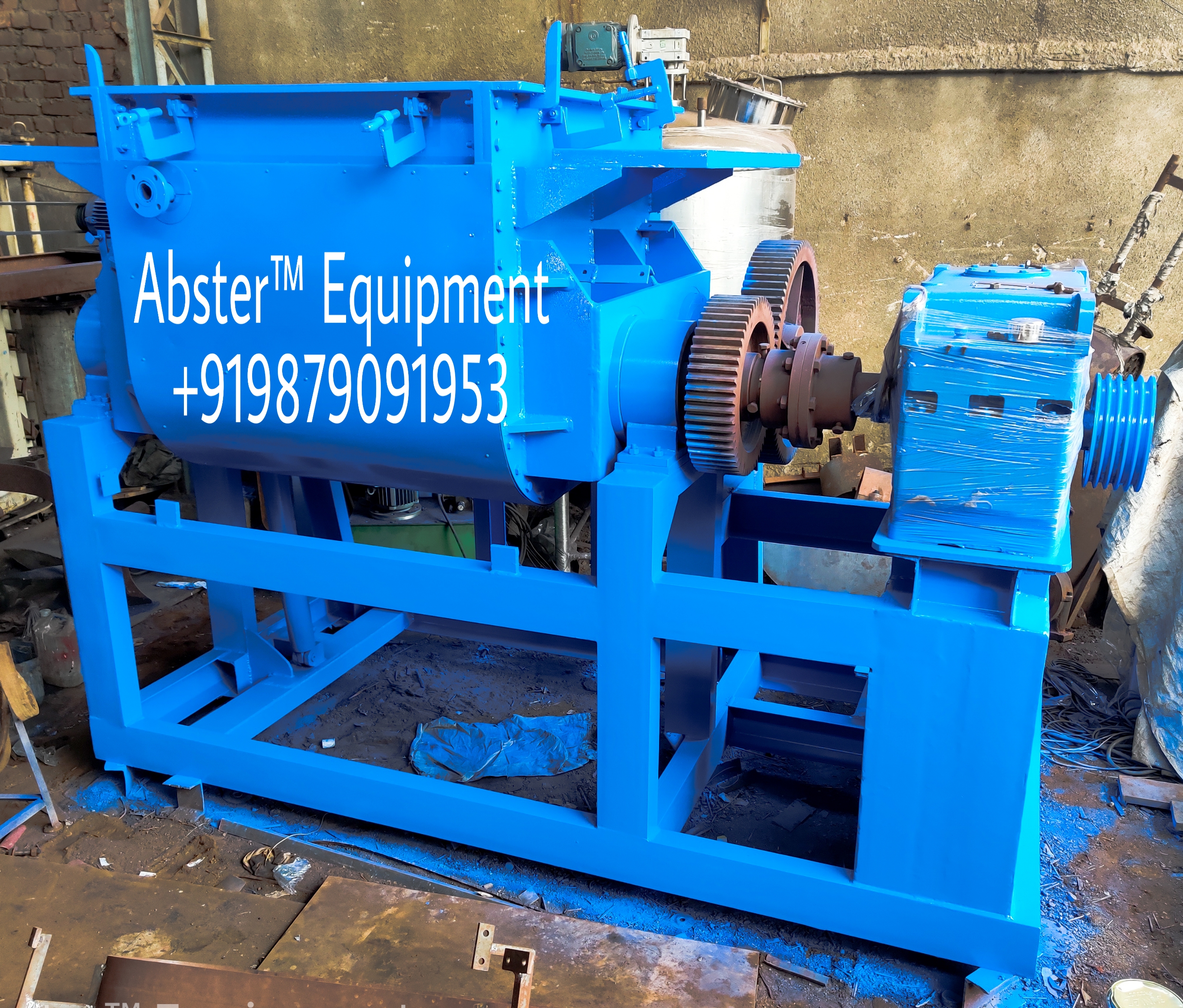

Automatic Rubber HIV Mixing Vacuum Kneader Sigma Mixer for Resin sealant

Automatic Rubber HIV Mixing Vacuum Kneader Sigma Mixer for Resin sealant

Automatic-Rubber-HIV-Mixing-vacuum kneader Sigma mixer-for-Resin-Sealant

Specifications

Abster™ vacuum kneader Sigma mixer is a kind of ideal high-performance equipment for mixing and kneading high viscosity material.

Abster series Sigma Mixer kneader is a kind of ideal high-performance equipment for mixing and kneading high viscosity and super high viscosity materials. Vacuum Kneader is widely used in such industries as high viscosity sealant, silicone rubber, CMC, battery, ink, dye, pharmacy, resin, plastics and cosmetics, etc.

Sigma Kneader temperature adjustment can be done by using heat transfer oil circulation, electric heating, steam and water cooling. It can be made tank body jacket, wallboard jacket, stirrer passing cooling water, passing heat transfer oil and such structures for heating and cooling.



Discharge modes include hydraulic tank turning discharge, screw discharge, bottom discharge and so on. Tank cover open and close are operated by hydraulic. Feeding and discharge are very convenient.

 Sigma Kneader Mixer is comprised of 6 parts of kneading, chassis, transmission system, vacuum system, hydraulic system, electric control system, etc. Kneading part is comprised of tank, stirrers, wallboard and tank cover. Stainless steel is used for parts contacting materials.

Available capacity: 1L, 2L, 5L, 10L, 50L, 100L, 200L, 300L, 500L, 1000L, 2000L, 3000L, 6000L

Sigma Mixer Specification

ModelNominal CapacityVacuum DegreeDischarge ModeHeating/Cooling Mode
ABF-11L-0.098MPaManual Tank TurningElectric or Stream/ oil or water cooling
ABF-22L-0.098MPaManual Tank TurningElectric or Stream/ oil or water cooling
ABF-55L-0.098MPaManual Tank TurningElectric or Stream/ oil or water cooling
ABF-1010L-0.098MPaManual Tank TurningElectric or Stream/ oil or water cooling
ABF-5050L-0.098MPaManual Tank TurningElectric or Stream/ oil or water cooling
ABF-100100L-0.098MPaManual Tank TurningElectric or Stream/ oil or water cooling
ABF-200200L-0.098MPaManual Tank TurningElectric or Stream/ oil or water cooling
ABF-300300L-0.098MPaManual Tank TurningElectric or Stream/ oil or water cooling
ABF-500500L-0.098MPaManual Tank TurningElectric or Stream/ oil or water cooling
ABF-10001000L-0.098MPaManual Tank TurningElectric or Stream/ oil or water cooling
ABF-20002000L-0.098MPaManual Tank TurningElectric or Stream/ oil or water cooling
ABF-30003000L-0.098MPaManual Tank TurningElectric or Stream/ oil or water cooling
