Butterfly High Viscosity Mixer



Butterfly High Viscosity Mixer

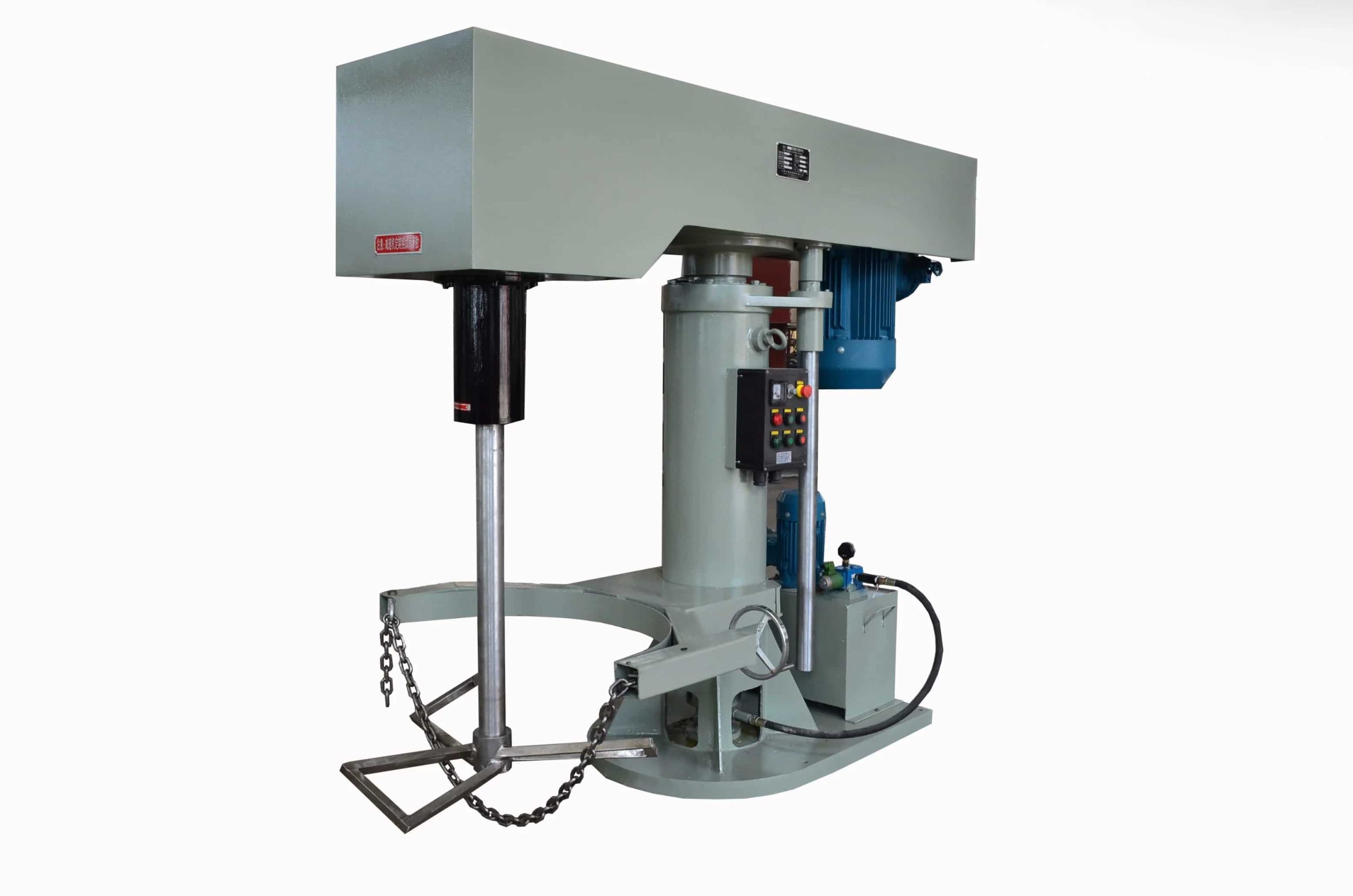

butterfly mixer for high viscose mixingButterfly mixer



Drive Head

Buttefly Mixer has A steel fabricated enclosure inside which is installed the drive assembly consisting of a set of balanced pulleys, V belts, electric motor and motor tensioning device. The butterfly mixer  drive head is of hinged type construction which can be opened for maintenance.



Butterfly Mixer Main shafts and mixing blades

The low speed mixer’ blade is made of three leaf butterfly models.

The shaft is installed in a bearing housing provided with taper roller bearings. Lubrication points are provided on the housing.



Lifting and lowering

The entire drive head and shaft is mounted on a hydraulic column which can be lifted and lowered to clear the height of the vessel. The Hydraulic column comes complete with hydraulic cylinder, piston rod, power pack unit, valves electric motor and all interconnecting pipelines and hoses.



Electric Motor

TEFC motor, drives a set of pulleys and V belts. The Motor is provided with a belt tensioning device. The motor details are 415 V / 50 Cycles / 3 Phase . First-class Chinese motor as standard. Siemens and ABB motor are optional



Speed inverter

An AC Frequency inverter installed in a panel controls the RPM of the Disperser shaft from 0-1500. The inverter is provided with settings for monitoring torque, amperage, voltage, power factor etc and is PC compatible. Siemens, ABB and Yaskawa speed inverter are optional



Electric Control Panel (Non-Ex proof)

A control panel is provided with the following functions. Main motors on off, ammeters, voltmeter, emergency stop, inverter trip, indicating lamps, speed control switch, RPM indicator. All internal wiring is per international codes of practice.



Electric Control Panel (Ex proof)

A remote control panel is provided with the following ex proof controls. Main motors on off, ammeters, voltmeter, emergency stop, inverter trip, indicating lamps, speed control switch, RPM indicator. All internal wiring is per international codes of practice. The inverter is installed in a separate panel and is to be installed in a safe Non-Ex proof zone.



Vessel Locking Device (Optional)

A vessel locking device consisting of locking arms, cantering device, and manually operated locking screw is provided.



Vessel (Optional)

The mixing vessel is fabricated from SS plates and is provided with 3 nos castor wheels, SS bottom discharge ball valve and towing handles. All SS parts are duly polished inside and outside.



Vacuum (Optional)

It is possible to manufacture based on vacuum structure, in order to get better defoaming as well mixing results.



Main Technical Data:



TypeMotorBlade speed

(Rpm)

Blade diameter (mm)Lifting distancePump motor(kw)Capacity (L)
ESDSJ-11 1165/1305707001.1200
ESDSJ-9002265/1308709001.5500
ESDSJ-10003765/13097012002.2800
ESDSJ-12004565/130116014002.21200
