Food Emulsifying tank, High shear mixing tank, Emulsification tank

500L 1500L ss304 316L stainless steel mixing emulsifier tank high shear with Jacket

Food Emulsifying tank, Stainless Steel electric Heating Sugar Melting Tank

food-emulsiyfing-mixint-tank
Product Description

Product Description:

Single-layer emulsification tank use the high-speed homogenizer to mix and emulsify the medium in the tank, emulsification, single-layer emulsification tank has the advantages of easy to operate, simple structure, single-layer emulsifying tank outlet according to customer requirements can be customized into the cone bottom (convenient discharging) or flat bottom structure.



Working Principle:

Single-layer emulsion tank in the operation, the homogenizer head high-speed rotating, resulting in a strong suction, material sucked into the working head, and then thrown to the stator, jetting through the gap of the stator teeth, while the anti-vortex baffle at the bottom transform the rotating force into up and down force, through this repeated action to mix materials evenly, prevent the powder material from accumulating on the liquid surface, and finally to achieve the purpose of emulsification and homogeneous. The production process of the material is done in a closed condition, safe and hygienic.



Features:

1) Emulsification tank adopts sanitary and aseptic design;

2) On-line CIP cleaning and on-line SIP sterilization function;

3) Structural design is very user-friendly, simple operation, easy maintenance, no seal leakage and sanitary;

4) Appropriate diameter height ratio, energy saving, fast mixing of materials, high efficiency of emulsification and homogenization;

5) Smooth operation, low noise;

6) The inner tank surface mirror polished, the inlet and outlet, sight glass, manholes such as opening and inner tank welding adopts flanging arc transition, smooth and easy to clean without dead ends, to ensure the reliability and stability of the production process, in line with GMP and other regulatory requirements;

7) Can be equipped with temperature display control and external liquidometer.



Application:

Food Industry: Yogurt, Ice Cream, Cheese, Soft Drink, Fruit Jelly, Ketchup, Oil, Syrup, Chocolate etc.

Daily Chemicals: Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo, Shoe Polish, Cosmetics etc.

Pharmacy: Nutrition Liquid, Chinese Traditional Patent Medicine, Medicine Grease, Biological Products etc.



Parameters:

Effective Volume (L)Dimension of Tank (mm*mm)Total Height(MM)Heat Preservatuion Layer(mm)Motor Power (KW)Blending Speed(r/min)
10001060*12202950607.51750
20001340*1500340060111750
30001410*2000390060151750
40001620*200040306018.51750
50001810*2000413060221750

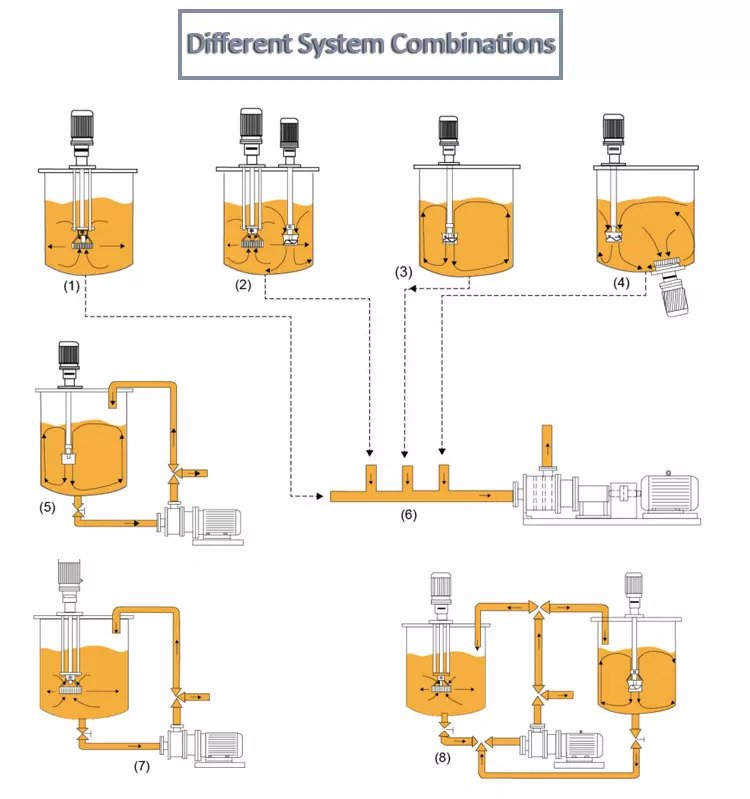

emulsifying-tanks
