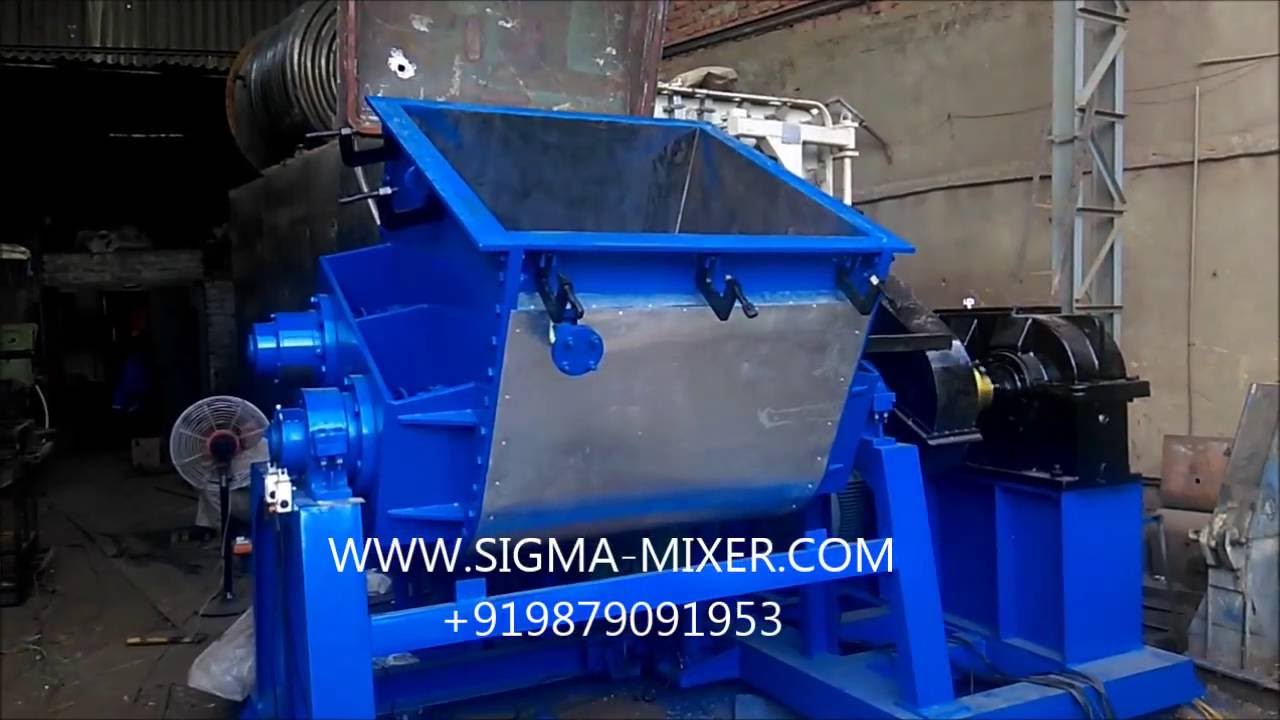

Polyester Putty Mixer Hydraulic Tilting Dual Z Blades Mixer
Abster™ Equipment
Ahmedabad, India
Since: 1998
Business Type: Manufacturer/Factory,Trading Company
+91-9879091953
+91-9427554374
Polyester Putty Mixer Hydraulic Tilting Dual Z Blades Mixer
Technical Specification
Application:
| Model | ABFSM500 |
|---|---|
| NEW | |
| Operating | Cycle Operating |
| Heating/Cooling/Vacuum | |
| W type shape | |
| Lay out type | Horizontal |
| BMC/DMC, Chewing Gum, Candy/Sugar Paste, Plasticiz | |
| Application | Liquid with Suspended Solids, Viscous Fluid, Viscosity Materials |
| Z Blades Counter Rotarion | |
| Working | Kneading mixer |
| Mixer type | Z Type Mixer |
| Origin | India |
Product Description
Introduction:
Welcome to Abster Equipment your professional and reliable supplier of Kneading Machinery since 1998.sigma mixer/Z blades mixer/kneading machine/sigma kneader with double Z/Sigma Blades, is to be used for mixing and kneading of low-to high-viscosity products in many industries such as BMC/DMC, Chewing gum, candy/sugar paste, plasticize/silly putty, Hot melt adhesive , silicon compound, CMC/Cellulose, Electrode paste, carbon, pencil leads, soap, pigments, inks, plastic ect.
Welcome to Abster Equipment your professional and reliable supplier of Kneading Machinery since 1998.sigma mixer/Z blades mixer/kneading machine/sigma kneader with double Z/Sigma Blades, is to be used for mixing and kneading of low-to high-viscosity products in many industries such as BMC/DMC, Chewing gum, candy/sugar paste, plasticize/silly putty, Hot melt adhesive , silicon compound, CMC/Cellulose, Electrode paste, carbon, pencil leads, soap, pigments, inks, plastic ect.
Machine structure:
Including kneading/mixing system, machine base, hydraulic system, transmission system, electric control system, heating system (optional), cooling system (optional), vacuum system (optional) –
Including kneading/mixing system, machine base, hydraulic system, transmission system, electric control system, heating system (optional), cooling system (optional), vacuum system (optional) –
— Discharge:
Tilting discharging
Screw extruding discharging
Ball valve/bottom plate ( manual, electrical, pneumatic)
(for hot melt adhesive producing, normally use excrew extruding or bottom valve )
Screw extruding discharging
Ball valve/bottom plate ( manual, electrical, pneumatic)
(for hot melt adhesive producing, normally use excrew extruding or bottom valve )
—- Heating:
electric heating, hot water heating, hot oil heating, steam heating
(for hot melt adhesive producing, normally use electric heating or hot oil heating, and sides plate also with heating jacket. )
(for hot melt adhesive producing, normally use electric heating or hot oil heating, and sides plate also with heating jacket. )
— Cooling:
Z blades water cooling, mixing chamber with jacket for cooling purpose.
(for hot melt adhesive producing, cooling is not required)
(for hot melt adhesive producing, cooling is not required)
—- Vacuum system: water-ring vacuum pump and buffer tank.
(for hot melt adhesive producing, better with vacuum function. )
(for hot melt adhesive producing, better with vacuum function. )
Parameters:
| Model(L) | NH-1 | NH-2 | NH-5 | NH-10 | NH-50 | NH-100 | NH-200 | NH-300 | NH-500 | NH-1000 | NH-1500 | NH-2000 | NH-3000 | NH-4000 | NH-5000 | NH-6000 | |||||
| volume(L) | 1 | 2 | 5 | 10 | 50 | 100 | 200 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 | |||||
| Steam pressure(Mpa) | 0.3 | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 | |||||
| Hot oil circulation(Mpa) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |||||
| Electric heating(Kw) | 0.5 | 1 | 1.5 | 2 | 3-6 | 4-11 | 6-15 | 6-18 | 12-24 | 18-36 | 32-45 | / | / | / | / | / | |||||
| Fast Rpm | 45 | 42 | 60 | 45 | 35 | 36 | 36 | 40 | 30 | 35 | 40 | 35 | 32 | 30 | 35 | 35 | |||||
| Slow rpm | Speed ratio 1.0-1.9 as option, according to materials features. | ||||||||||||||||||||
| Main motor (Kw) | 0.37-1.1 | 0.55-1.5 | 0.75-2.2 | 1.5-3 | 3-5.5 | 4-11 | 5.5-15 | 5.5-18 | 11-45 | 18.5-75 | 22-90 | 45-160 | 55-190 | 75-250 | 90-225 | 90-225 | |||||
| Vacuum | ≤-0.094Mpa | ||||||||||||||||||||
| Discharge | 1.manual (for small capacity) 2.bottom ball valve 3.electric tilting 4.screw extruding | ||||||||||||||||||||
