What is the definition of ribbon blender?

What is the definition of ribbon blender?

ribbon blender mixer

An industrial-strength machine, a ribbon blender is used to mix large amounts of material in many different industries. The blender gets its name from the thin, ribbon-shaped metal mixers that perform the blending.

Ribbon Blender Features

Most ribbon blenders consist of an engine to power operation, a large trough to hold the material and a ribboned agitator that does the mixing.

Identification
A ribbon blender’s agitator typically has metal ribbons, often in a double helical design, surrounding a central bar that extends the length of the trough. The ribbons are angled and balanced in such a way to continually move material within the container.

How Do Ribbon Blender Work? What Are the Parts of a Blender?

Features

Most ribbon blenders consist of an engine to power operation, a large trough to hold the material and a ribboned agitator that does the mixing.

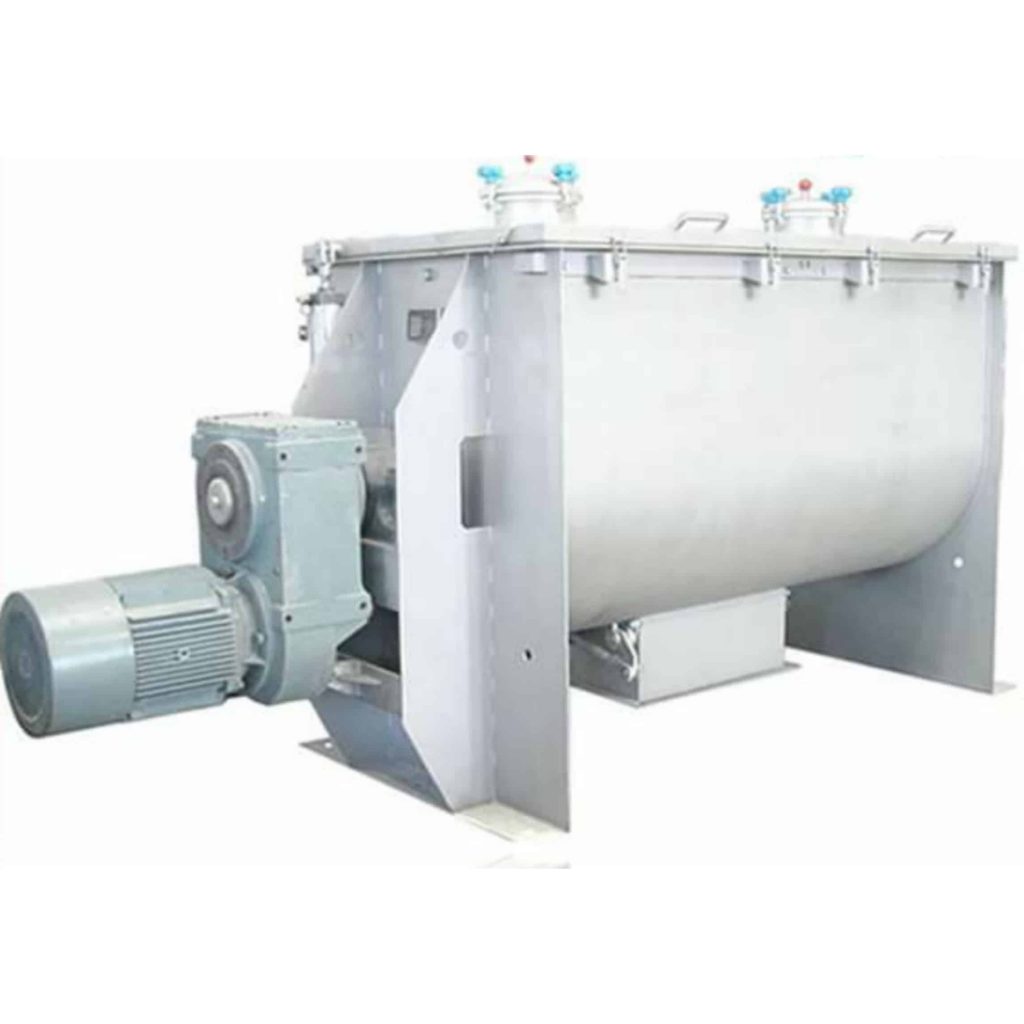

dry powder ribbon blender

Identification
A ribbon blender’s agitator typically has metal ribbons, often in a double helical design, surrounding a central bar that extends the length of the trough. The ribbons are angled and balanced in such a way to continually move material within the container.

Mixing Powder
Quality Products to Process, Lift, Contain & Transfer Powder/Granules.

Ribbon blenders are used to mix a wide range of both dry and wet materials, including such items as cake mixes, cereal, cocoa, cosmetics, flavorings, gelatin, instant formula, medications, pet food, salad dressing and seasonings.

Benefits
Due to the agitator’s unique design, a ribbon blender moves material inside the trough towards the discharge point, thoroughly mixing the contents without any dead spots.

Size
Ribbon blenders come in a variety of sizes and capacities, with models designed to handle anywhere from as little as five liters of material all the up to 25,000 liters or more.

Ribbon Blender Specification

Model Nominal Volume Mixing Volume Speed(RPM) Motor Power
VRB-0.1m³ 100L 40L-60L 76 3KW(4HP)
VRB-0.3m³ 300L 120L-180L 66 4KW(5.5HP)
VRB-0.5m³ 500L 200L-300L 66 5.5KW(7.5HP)
VRB-1m³ 1000L 400L-600L 41 11KW(15HP)
VRB-2m³ 2000L 800L-1200L 41 18.5KW(25HP)
VRB-3m³ 3000L 1200L-1800L 33 22KW(30HP)
VRB-4m³ 4000L 1600L-2400L 33 22KW(30HP)
VRB-5m³ 5000L 2000L-3000L 26 30KW(41HP)
VRB-6m³ 6000L 2400L-3600L 26 37KW(50HP)
VRB-8m³ 8000L 3200L-4800L 26 45KW(61HP)
VRB-10m³ 10000L 4000L-6000L 20 55KW(75HP)
VRB-12m³ 12000L 4800L-7200L 20 55KW(75HP)
VRB-15m³ 15000L 6000L-9000L 17 75KW(102HP)
VRB-20m³ 20000L 8000L-12000L 17 75KW(102HP)

Advantages of Horizontal Ribbon Blender

ribbon blender, ribbon mixerribbon mixer shaft

  • Mild mixing which will not break the physical size of material
  • More loading factor:ribbon blender’s working volume is between 40%-70% of the total nominal volume, but generally speaking, 60% is maximum loading ratio of ribbon blender when mix heavy bulk density material
  • Easy Cleaning: usually, the opening at ribbon blender’s top cover is very large to touch into the inner surface for cleaning purpose.
  • Easy Maintenance: the structure of ribbon blender is very simple, easy to dismantle and maintenance
  • Low Power Energy

Standard Features of Ribbon Blender

  • Capacity range from 100-30000L

    1000L Ribbon Mixer
    1000L Ribbon Mixer
  • Mild Steel/Stainless Steel construction
  • Flange connection ribbon shaft or Thru ribbon shaft
  • Normal Temperature and Pressure inside ribbon blender
  • Gland Packing Seal + Air Purge Seal
  • Pneumatic Operated Outlet Valve

Special Features of Abster™ Ribbon Blender

Abster Equipment has been a ribbon blender manufactuer since 1991, decades years’ experience and constant improving technology makes vortex ribbon blender stand out with below special features.

  • Vacuum/Pressure inside ribbon blender

    Dimple Jacket Ribbon Blender
    Dimple Jacket Ribbon Blender
  • Heating/Cooling Jacket for ribbon blender
  • Spraying Nozzle for liquid
  • Heavy-duty drive unit
  • Various Outlet Valve depend on customer’s process requirement
  • Explosion-proof for electricity
  • Electrical Control Panel system
  • GMP manufacturing
  • Teflon Coating for material contact part
  • Other Special Customize Design

Application of Ribbon Blender

The ribbon blender’s versatility for blending solids combined with it’s ability to perform heating, cooling, coating, and other processes make it a very popular mixer.

ribbon mixer in flour premix plant

  • Baby food
  • Milk powder
  • Bakery premixes
  • Salt
  • Dried food products
  • Animal feed
  • Plastic resins
  • Plastic powders
  • Carbon black
  • Polyethylene
  • Polymer additives
  • Chemicals
  • PVC compounding
  • Cleaning compounds
  • Talcum powders
  • Laundry detergents
